Henry Struck's 1937 Benny Boxcar
Scaled to 108 inch span
Page 6
Assembling the stabilizer and elevator spars over the plan.
The perimeter parts assembled.

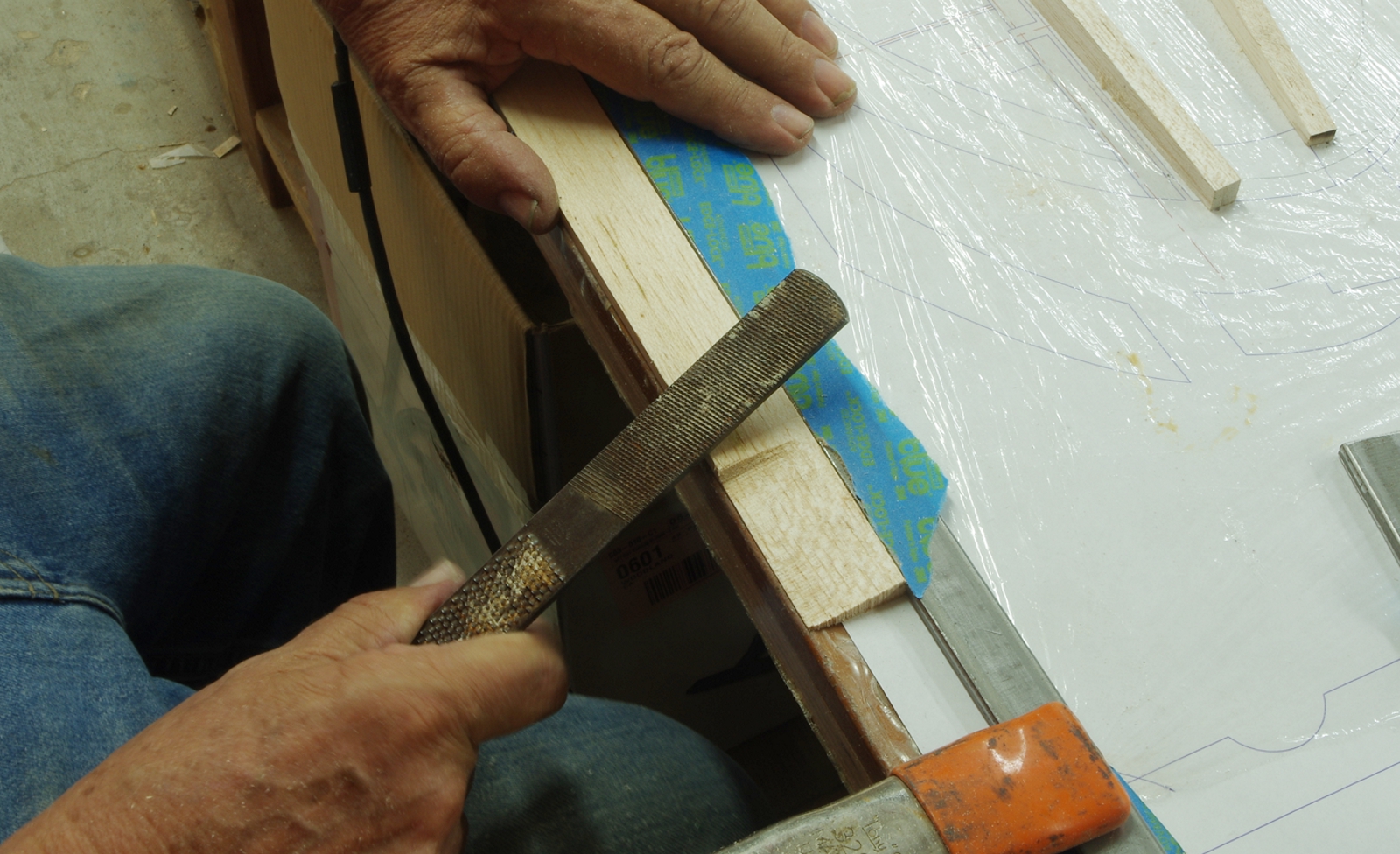

Shaping the trailing edge of the elevator. 1/4 X 1' bar stock prevents over sanding of the leading edge. The file is called a "four in hand" and is useful for quickly roughing out shapes.
Smoothing with a sanding bar and 80 grit paper.
